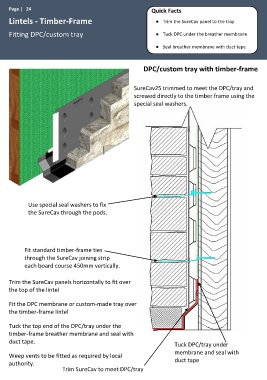

Page 24 - Architects Design and Installation Manual

Page | 24 Quick Facts
Lintels - Timber-Frame ● Trim the SureCav panel to the tray

Fitting DPC/custom tray ● Tuck DPC under the breather membrane

● Seal breather membrane with duct tape

DPC/custom tray with timber-frame

SureCav25 trimmed to meet the DPC/tray and
screwed directly to the timber frame using the
special seal washers.

Use special seal washers to fix
the SureCav through the pods.

Fit standard timber-frame ties
through the SureCav joining strip
each board course 450mm vertically.

Trim the SureCav panels horizontally to fit over
the top of the lintel

Fit the DPC membrane or custom-made tray over
the timber-frame lintel

Tuck the top end of the DPC/tray under the
timber-frame breather membrane and seal with
duct tape.
Tuck DPC/tray under
membrane and seal with
Weep vents to be fitted as required by local
duct tape
authority.
Trim SureCav to meet DPC/tray
