Quick Facts Page | 27
● Cut ventilation slot on flat face only Parapets
● Trim SureCav to closer and DPC supports Cavity closer
Ventilation

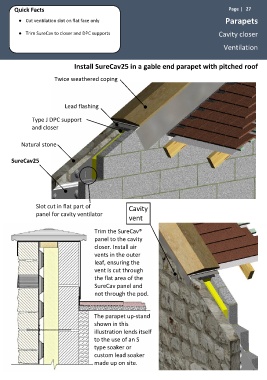

Install SureCav25 in a gable end parapet with pitched roof
Twice weathered coping
Lead flashing
Type J DPC support
and closer
Natural stone
SureCav25
Slot cut in flat part of Cavity
panel for cavity ventilator
vent
Trim the SureCav®
panel to the cavity
closer. Install air
vents in the outer
leaf, ensuring the
vent is cut through
the flat area of the
SureCav panel and
not through the pod.
The parapet up-stand
shown in this
illustration lends itself
to the use of an S
type soaker or
custom lead soaker
made up on site.
