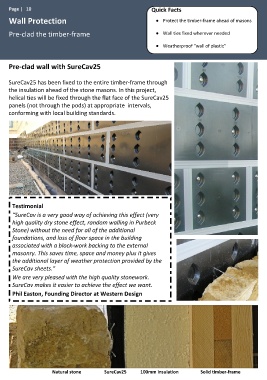

Page 10 - Architects Design and Installation Manual

Page | 10 Quick Facts
Wall Protection ● Protect the timber-frame ahead of masons

Pre-clad the timber-frame ● Wall ties fixed wherever needed
● Weatherproof “wall of plastic”

Pre-clad wall with SureCav25

SureCav25 has been fixed to the entire timber-frame through
the insulation ahead of the stone masons. In this project,
helical ties will be fixed through the flat face of the SureCav25
panels (not through the pods) at appropriate intervals,
conforming with local building standards.

Testimonial
“SureCav is a very good way of achieving this effect (very
high quality dry stone effect, random walling in Purbeck
Stone) without the need for all of the additional
foundations, and loss of floor space in the building
associated with a block-work backing to the external
masonry. This saves time, space and money plus it gives
the additional layer of weather protection provided by the
SureCav sheets.”
We are very pleased with the high quality stonework.
SureCav makes it easier to achieve the effect we want.
Phil Easton, Founding Director at Western Design

Natural stone SureCav25 100mm insulation Solid timber-frame
