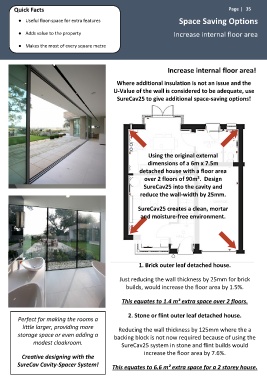

Page 35 - Architects Design and Installation Manual
P. 35
Quick Facts Page | 35
● Useful floor-space for extra features Space Saving Options
● Adds value to the property Increase internal floor area
● Makes the most of every square metre
Increase internal floor area!
Where additional insulation is not an issue and the
U-Value of the wall is considered to be adequate, use
SureCav25 to give additional space-saving options!
Using the original external
dimensions of a 6m x 7.5m
detached house with a floor area
over 2 floors of 90m². Design
SureCav25 into the cavity and
reduce the wall-width by 25mm.
SureCav25 creates a clean, mortar
and moisture-free environment.
1. Brick outer leaf detached house.
Just reducing the wall thickness by 25mm for brick
builds, would increase the floor area by 1.5%.
This equates to 1.4 m² extra space over 2 floors.
2. Stone or flint outer leaf detached house.
Perfect for making the rooms a
little larger, providing more Reducing the wall thickness by 125mm where the a
storage space or even adding a backing block is not now required because of using the
modest cloakroom. SureCav25 system in stone and flint builds would
increase the floor area by 7.6%.
Creative designing with the
SureCav Cavity-Spacer System!
This equates to 6.6 m² extra space for a 2 storey house.
